LED-180TGY4D: 1.8mm 2-Lead Green and Yellow Bicolor LED
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant
Part |
(4) Sun Light
Viewable LED |
|
(2) Super Bright
Dual Color 1.8mm Green & Yellow LED |
(5) High Bright
Indicator Light |
|
(3) Moisture &
UV Resistance Epoxy Len |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +90 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1)
Pulse width of 1/10 duty cycle and
0.1msec max. width and for long operating life recommended max. of 20mA
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage
(Green) |
VF |
IF
= 20mA |
3.0 |
|
3.5 |
V |
|
Forward
Voltage (Yellow) |
VF |
IF
= 20mA |
1.8 |
|
2.3 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
520 |
|
525 |
nm |
|
Dominant
Wavelength (Yellow) |
lD |
IF
= 20mA |
589 |
|
592 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
5,000 |
|
8,000 |
mcd |
|
Luminous
Intensity (Yellow) |
IV |
IF
= 20mA |
1,000 |
|
2,500 |
mcd |

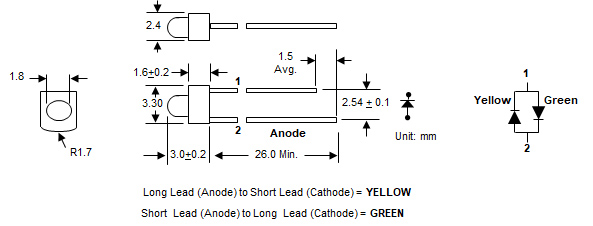

DEVICE DRAWING
|
LC LED Corporation |
